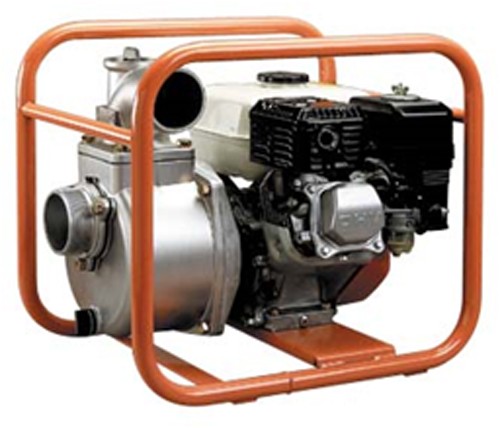

Water Engine Honda Koshin Pump
Applications
Sprinkling for field irrigation.
Irrigation of paddy fields.
Orchard cultivation.
Pumping water from wells.
Feeding or draining water to/ from ponds or troughs.
Feeding or draining water on fish farms.
Washing cattle, barns or agricultural tools.
Feeding water into water reservoirs.

Technical Data
Pump
Model : SHE-80X
Connection Dia. : 80mm ( 3 " )
Connection Thread : Outer Pipe Thread
Total Head : 26 m ( 85Ft)
Delivery Volume : 930 L/ min ( 246USG/ min)
Max.Suction Head : 8 m ( 26Ft)
Engine
Type : Forced Air-cooled 4 Stroke Gasoline Engine
Model : Honda GX-160
Exhaust Volume : 163cc
Rated Output : 2.9 kW ( 3.9 PS) / 3600 rpm
Max. Output : 3.6 kW ( 4.0 PS) / 3600 rpm
Fuel : Automative Unleaded Gasoline
Fuel Tank Capacity : 3.1 L
Continuous Operating Time : Approx. 2 hrs 10 min
Starting Method : Recoil Starter
Std. Accessories : 1 Strainer, 2 Hose Coupling, 3 Hose Band,
1 Engine Tool set
Gross weight : 34 Kg
Dimesion LxWxH : 530x399x473 mm
