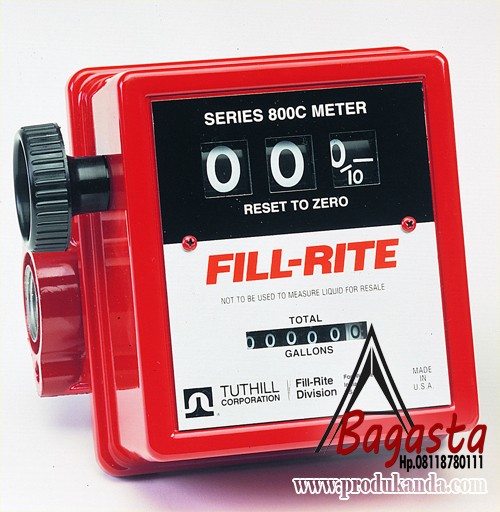

Flow Meter FILL-RITE 800 SERIES
Features : 3 Wheel Mechanical Flow Meter
Accuracy : ± 1%
Flow Rate : 5 to 20 GPM ( 19 to 76 LPM )
Pressure rating ( PSI ) : 50 ( 3.4 bar )
Resetable cumulative totalizer : 99.9 Gallons / 999 Liter
Master totalizer : 99, 999.9 Gallons / 999, 999 Liter
Construction : Aluminium
Large easy to read numbers : Yes
Plexible ports for horizontal or vertical positioning : Yes
360° Positionable Ports : -
Approvals : UL/ CSA Listed
20 Calibration Settings : -
Powered by two AA batteries : -
Gallon or liter Registration : Yes
Painted black for instalation on eitherHeavy Duty Standard Duty pumps except FR4210 ; comes with all fitting : Yes
1 " Ports : Yes
1-½ " Ports : -
Gravity-flow strainer straps tank contaminants : Yes
BSP threads : Yes
SAE threads : -
Teflon or nickel coatings increase selection of compatible fluids : Yes
Compatible fluids : Diesel Fuel, gasoline, kerosene, mineral spirits, stoddard solvent and heptane
